Measured Building Survey — Tunbridge Wells, TN1

ProjectDetails
LocationTunbridge Wells
Property TypeCommercial / Bar & Café
ServicesMeasured Building Survey
EquipmentTrimble X7
DeliverablesDWG & PDF
Site Visit1 Day
Turnaround3 Working Days
Street view of Fuggles Beer Cafe building front elevation, Tunbridge Wells TN1

Client:
Private

Property:
A multi-level commercial premises operating as a beer café and bar, featuring a main public bar floor, a complex back-of-house commercial kitchen, prep areas, rear storage, customer facilities, and a lower-ground cellar network.

Brief:
The client required a highly precise measured building survey of the entire operational commercial space. The data was needed to map out the exact internal layout, structural walls, levels, and service access points to assist with space optimization, structural alterations, or updated licensing and fire safety plans.

Survey Completed
Carried out a comprehensive measured building survey of the multi-level commercial bar and café premises utilizing a Trimble X7 laser scanner to minimize operational disruption. The survey successfully captured an intricate digital record of the property’s entire layout, accurately mapping out the main public bar area, active commercial kitchen, and prep stations. Additionally, the dataset features detailed planning records for back-of-house storage facilities, customer washrooms, the structural rear elevation, and the tight structural constraints of the lower-ground keg storage and cellar corridors.

Deliverables:

  • 3 Floor plans at 1:50
  • 2 Elevations at 1:50
  • Site pictures
  • 360 Panoramic Pictures

Outcome:
The completed survey provided the design team with a flawless, highly accurate digital blueprint of a complex, heavily serviced retail environment. By delivering precise floor plans, elevations, and structural sections down to the cellar level within three working days, the client received everything required to progress their layouts with absolute confidence. Following the successful delivery of this primary phase, 360 Measurements has been retained to survey the adjacent commercial property to support the client’s upcoming expansion and space amalgamation plans.

Site Pictures

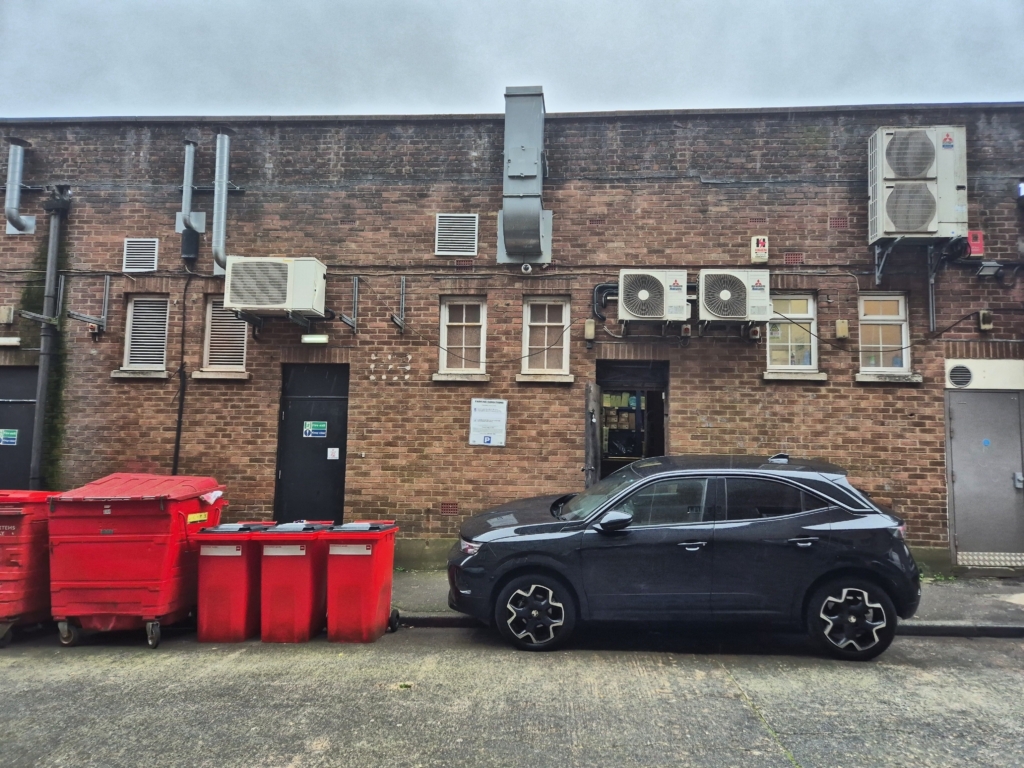

Rear elevation of commercial building during measured survey, Tunbridge Wells TN1

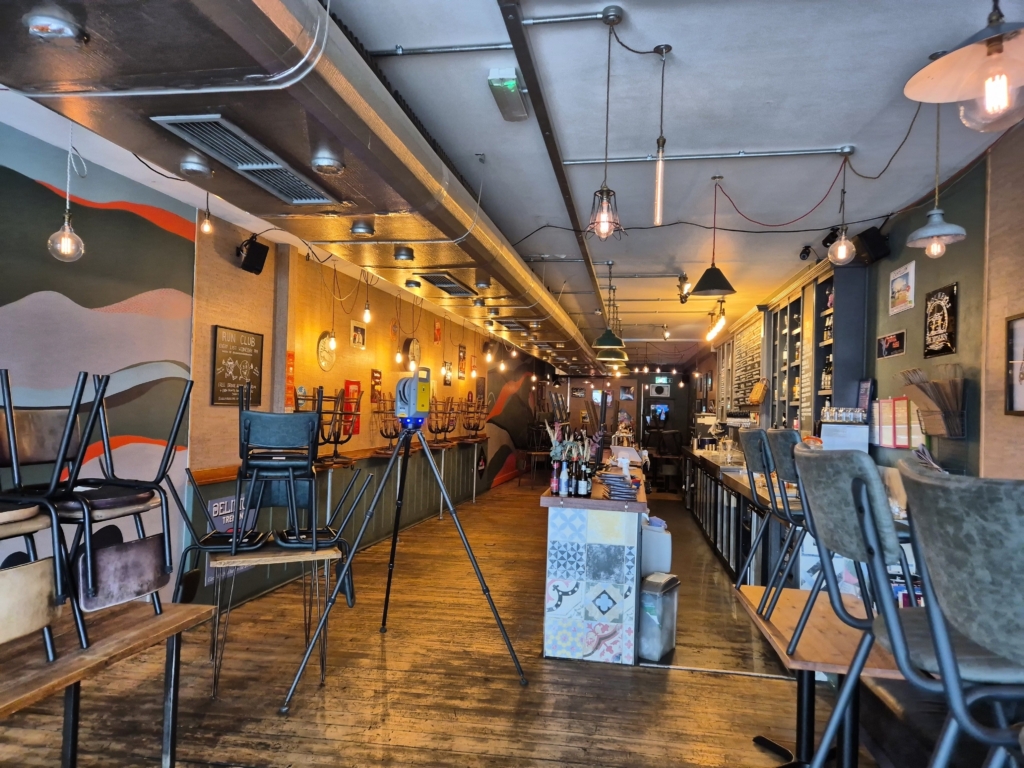

Trimble X7 laser scanner capturing point cloud data inside Tunbridge Wells bar

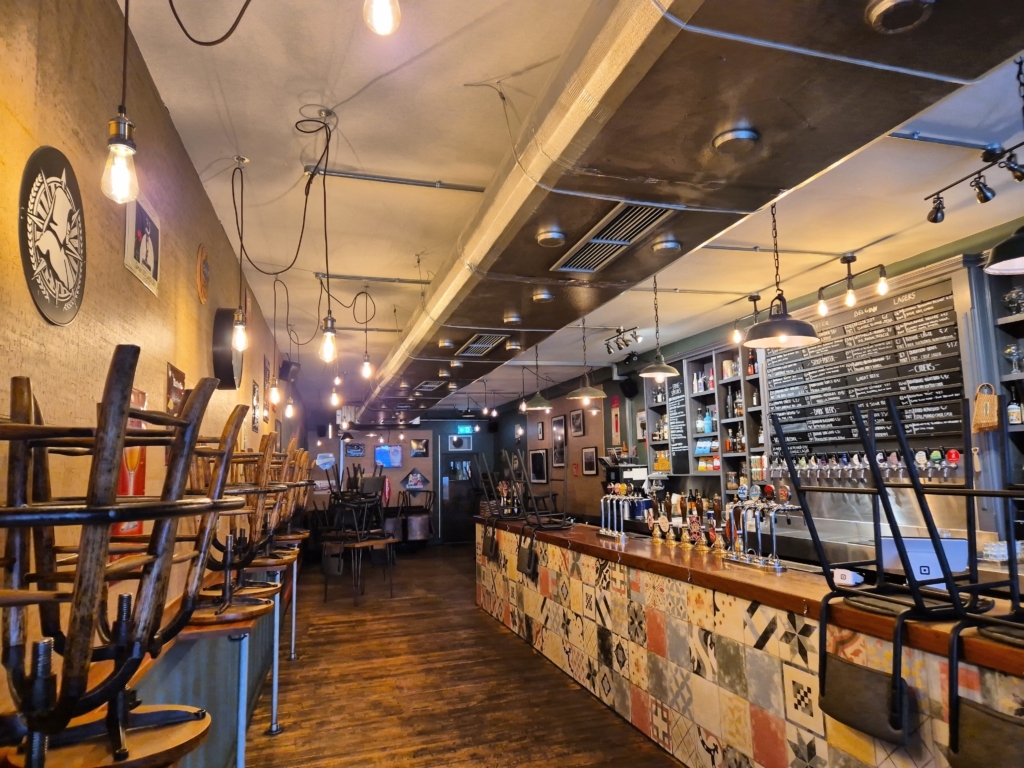

Interior bar counter and beer taps surveyed for measured building drawings
Vintage Echt Kriekenbier sign on cork wall inside Tunbridge Wells cafe

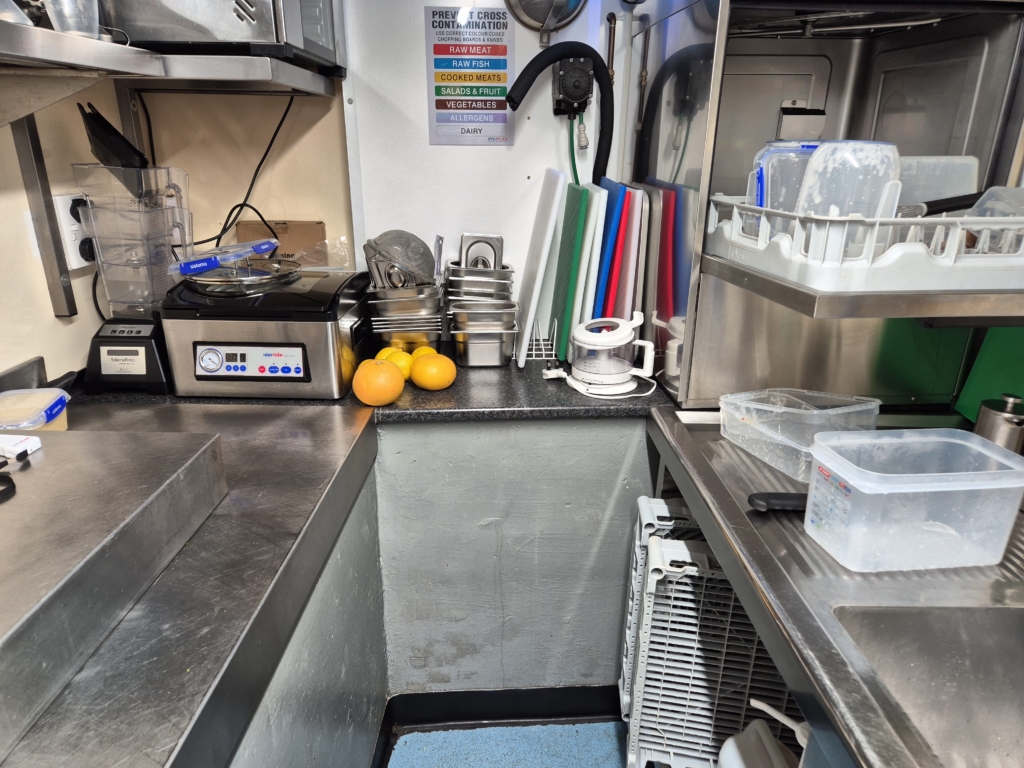

Commercial kitchen prep station measured for building survey drawings

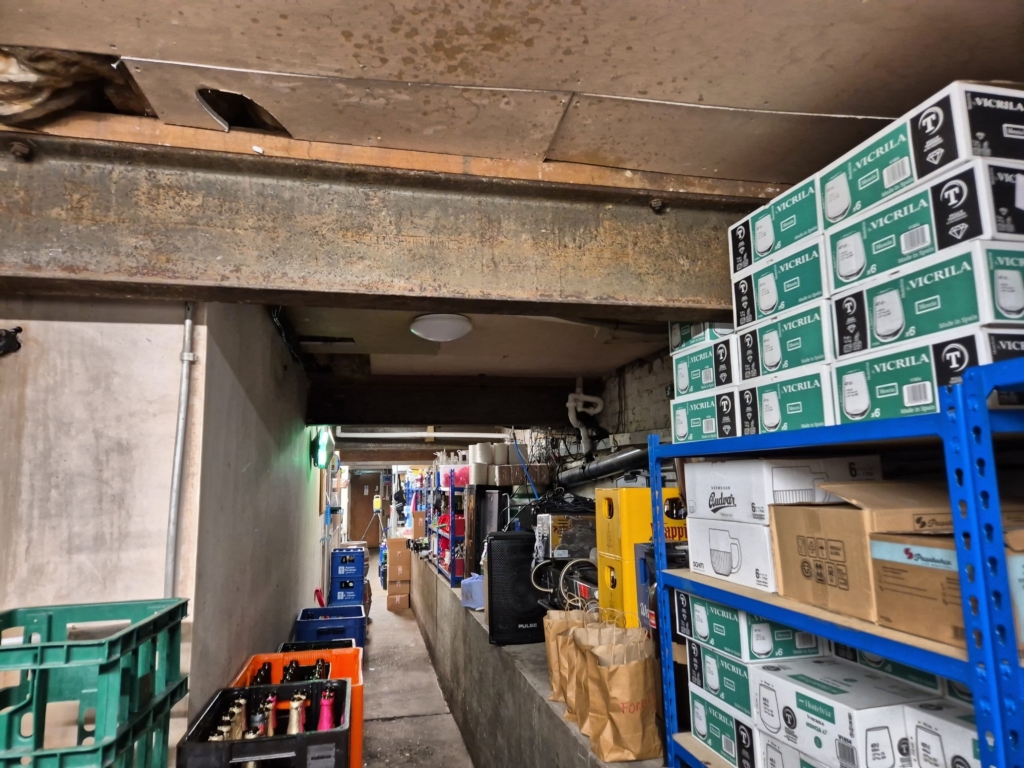

Narrow cellar corridor with keg and glassware storage during building survey

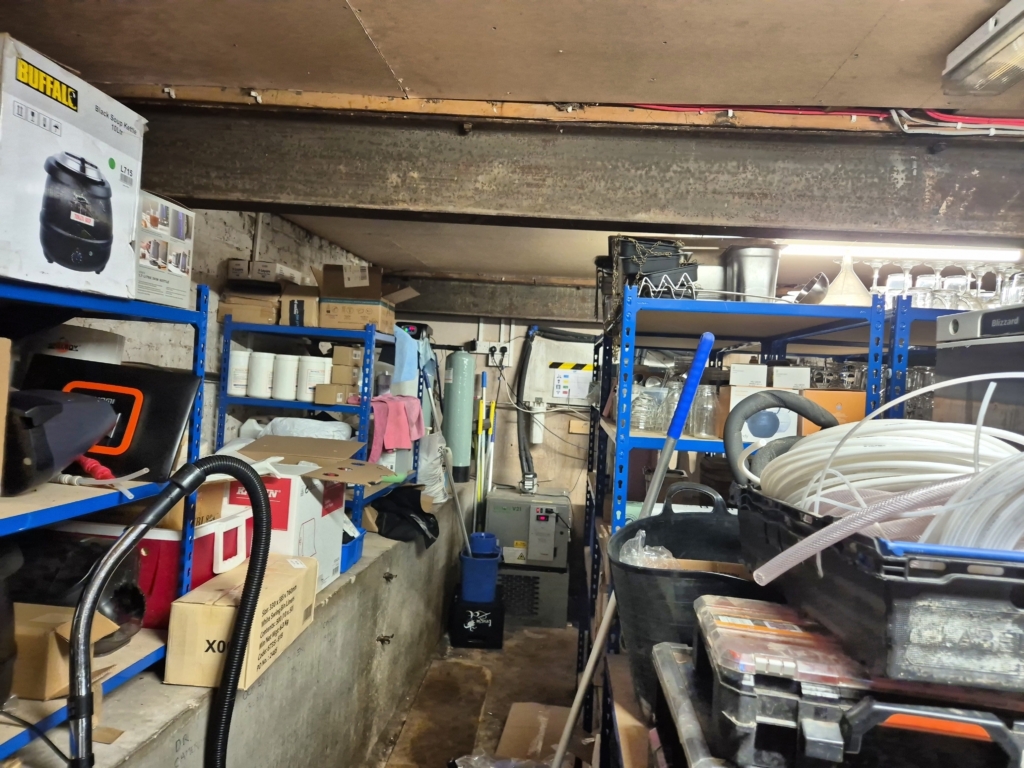

Rear storage room with shelving surveyed during commercial building measurement

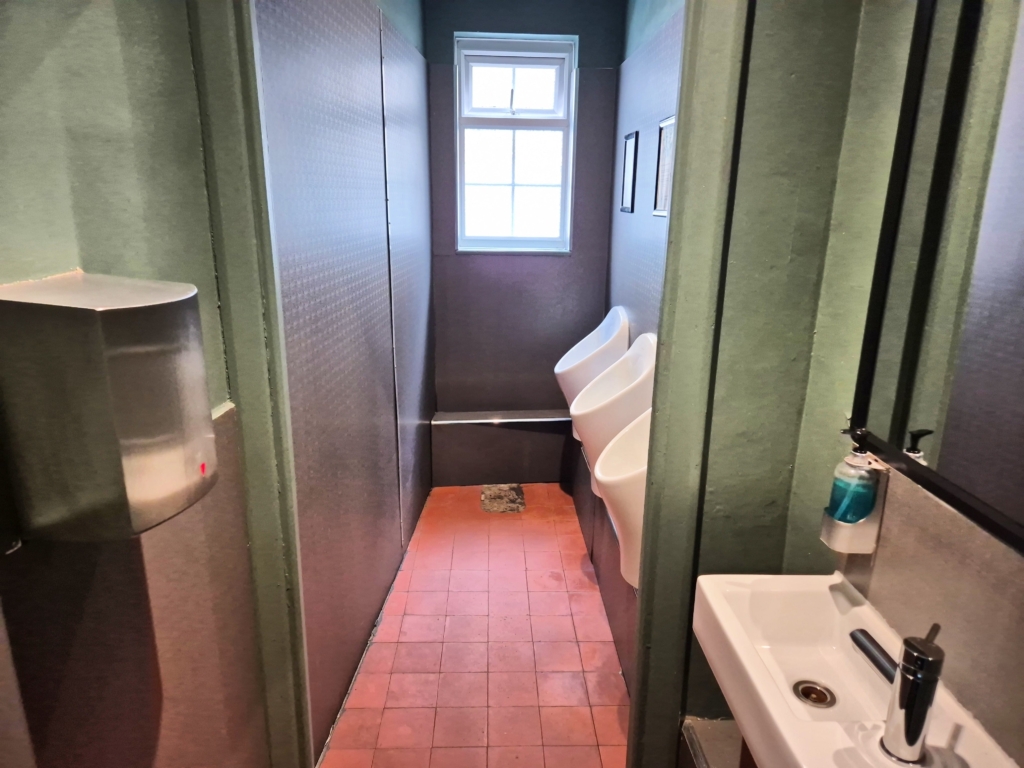

Commercial washroom and urinal facilities measured for building survey

Drawings

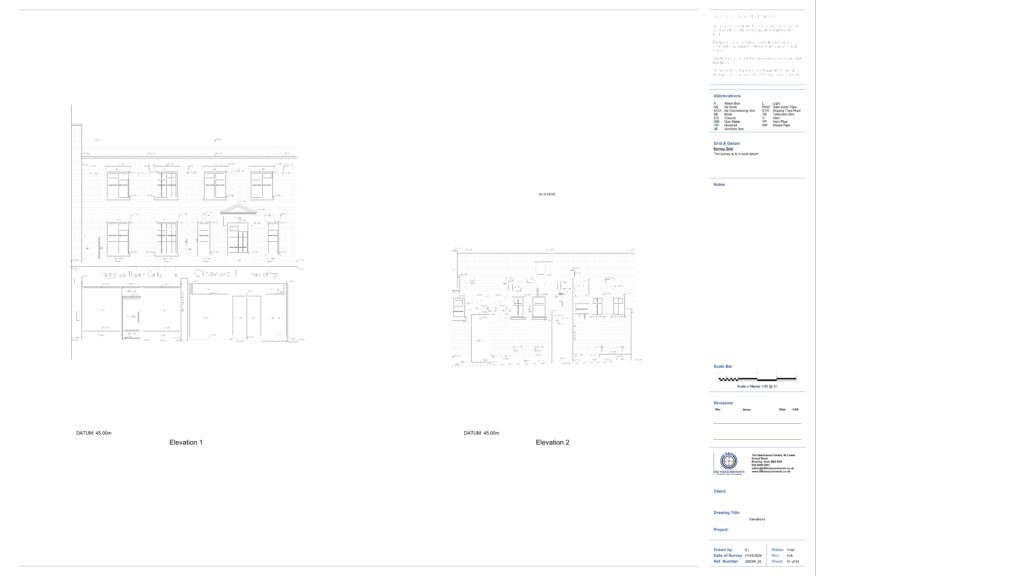

Commercial building street elevations and rear elevation profiles for a retail premises in Tunbridge Wells, TN1.

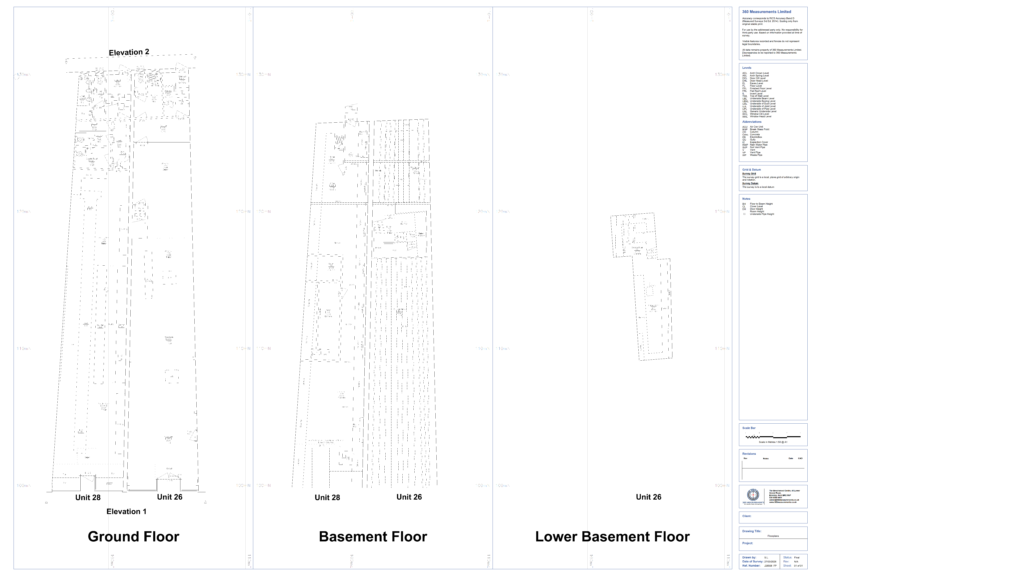

Measured building survey floor plans showing ground floor, basement, and lower ground cellar layouts in Tunbridge Wells.
