Measured Building Survey — London, W1H

---

Client:
Interior Designer

Property:
Residential flat in London undergoing an interior refurbishment. The property required an accurate measured building survey to provide existing-condition drawings for the interior design and planning stages.

Brief:
The interior designer required an accurate measured building survey of the flat to produce floor plans, floor plans with dimensions, and internal elevations. The survey was carried out to create reliable as-built drawings, allowing the proposed interior design to progress with confidence while reducing the risk of design errors.

Survey Completed

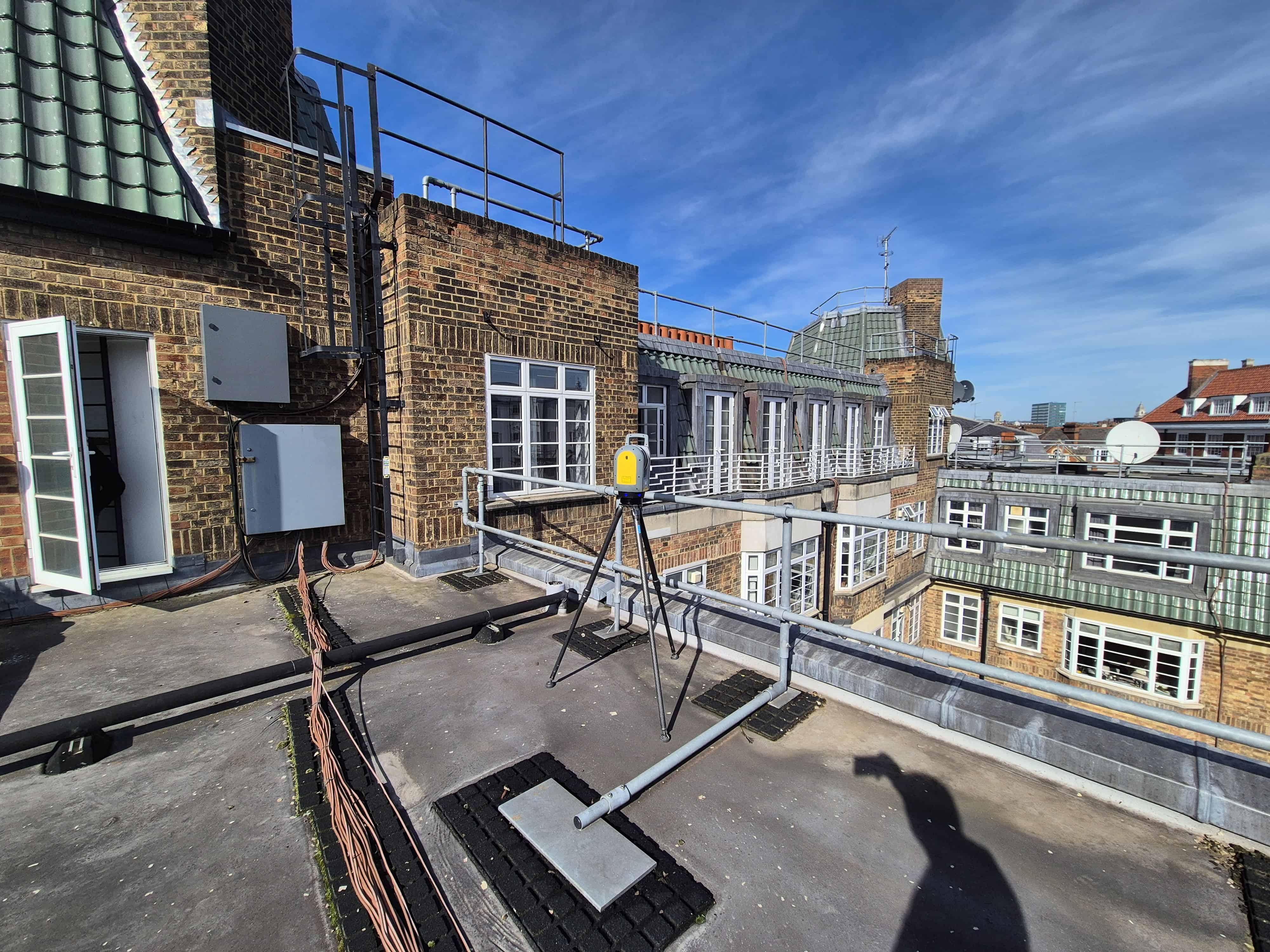

Carried out a comprehensive measured building survey of the London flat using professional laser measuring equipment to capture the property’s internal layout and architectural features.

Deliverables:
The client received:

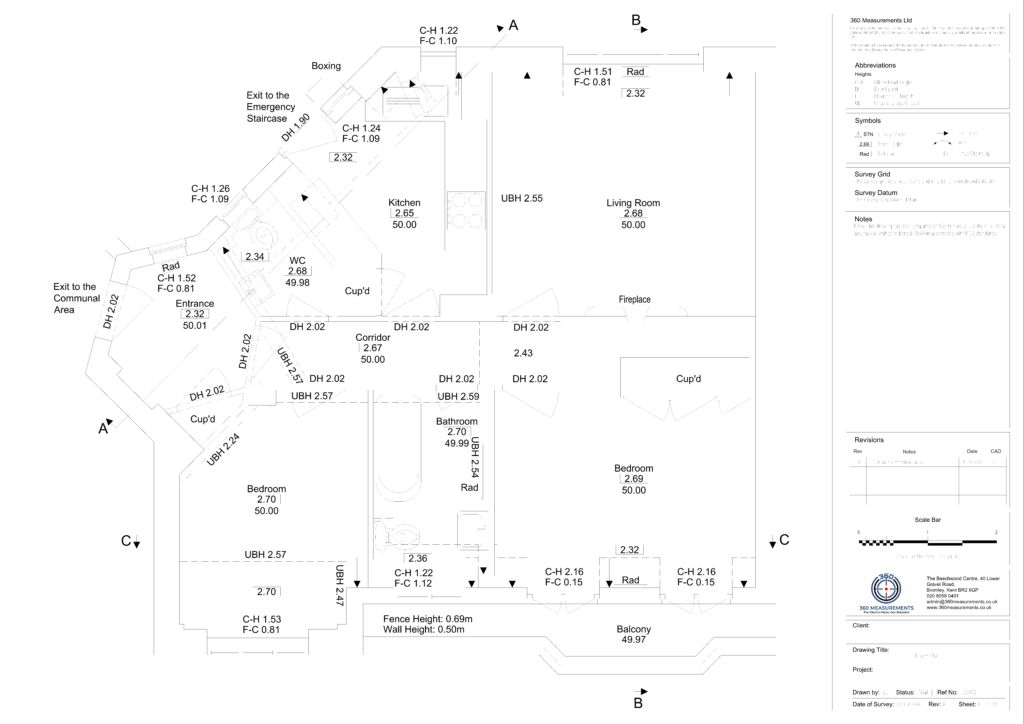

• 1 Floor Plan
• 1 Floor Plan with Dimensions

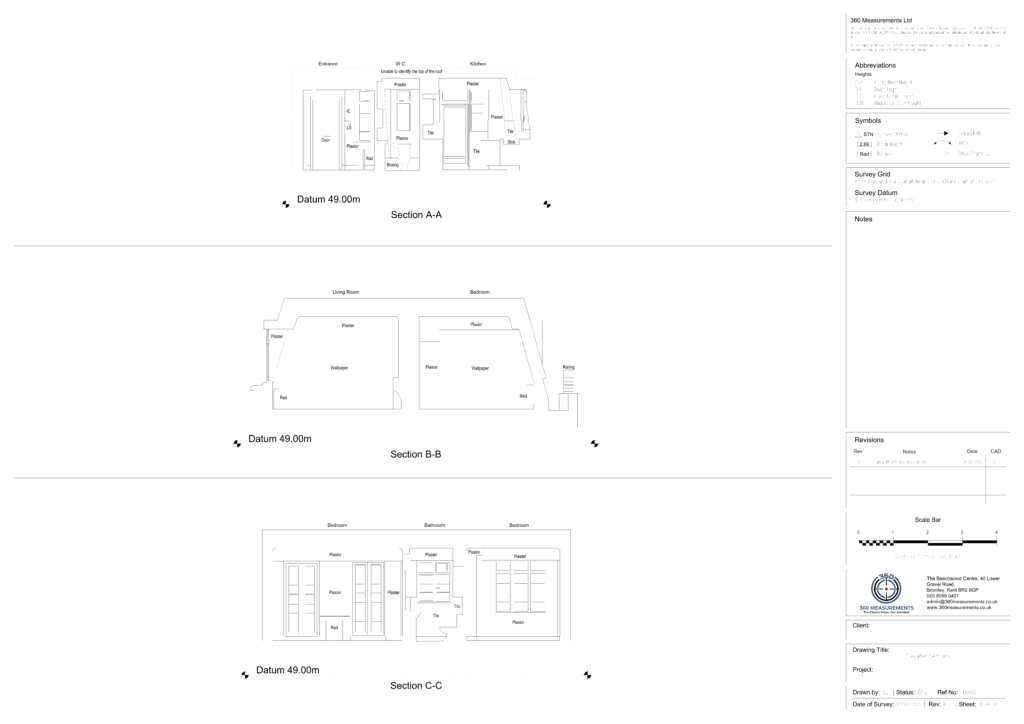

• 3 Internal Elevations
• Site pictures
• 360 Panoramic Pictures

Outcome:
The measured building survey provided the interior designer with precise as-built drawings and a complete digital record of the existing property. The floor plans, dimensioned drawings, internal elevations, site photographs, and 360 panoramic images enabled the design process to progress efficiently while minimising the need for additional site visits.

---

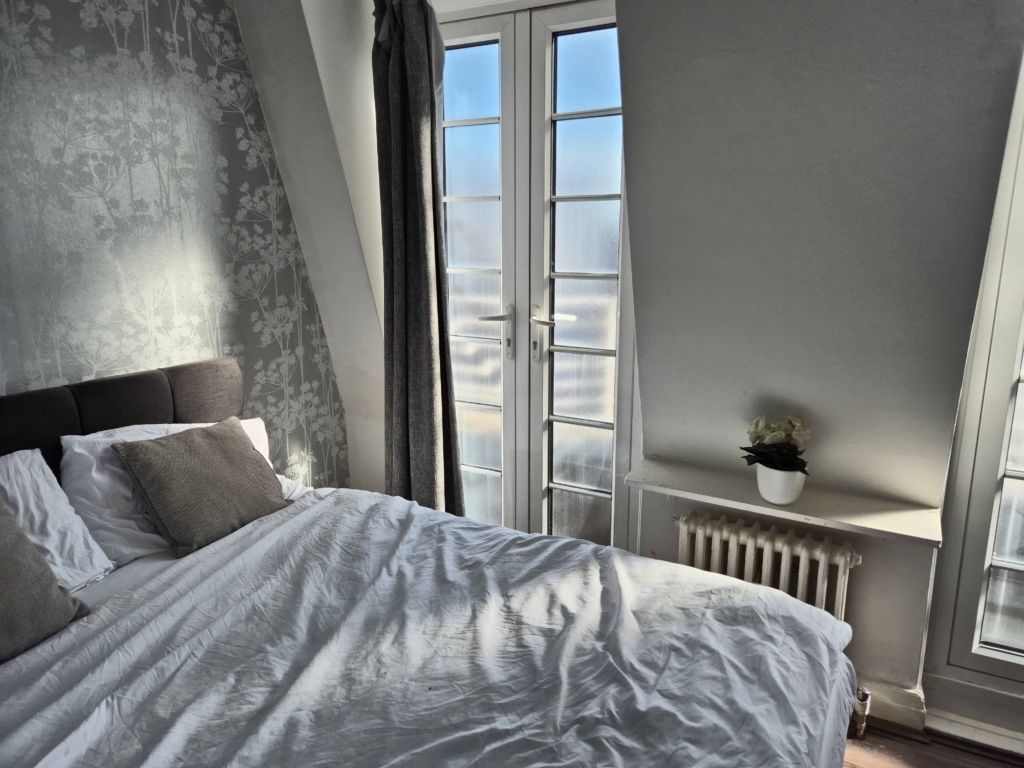

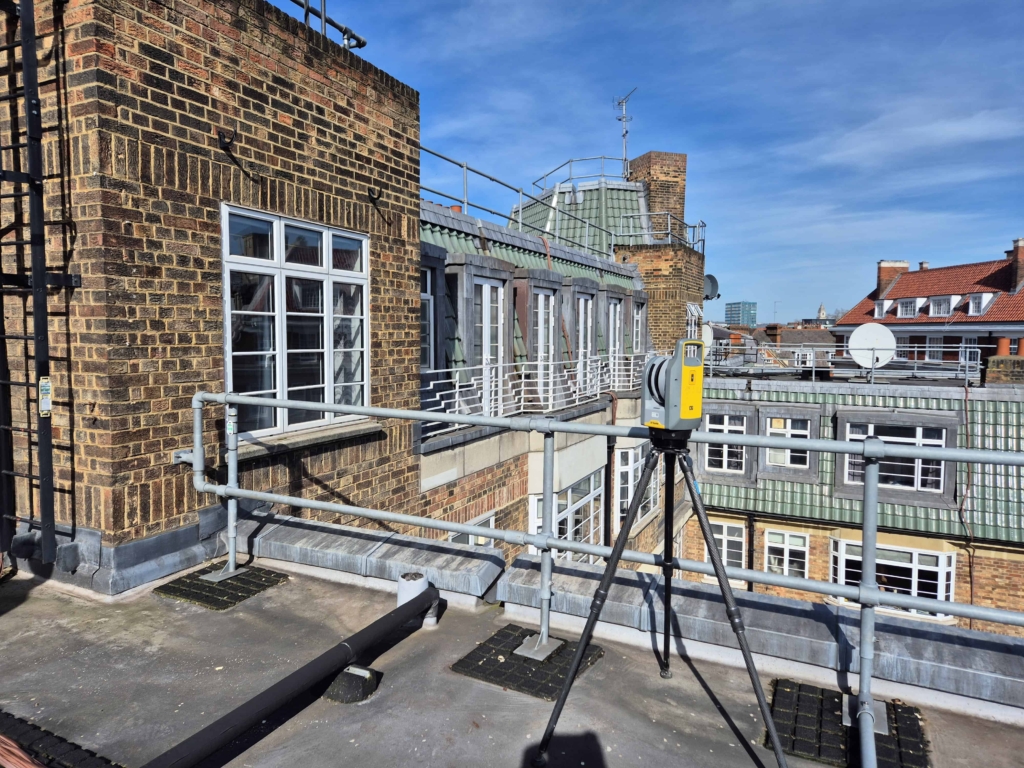

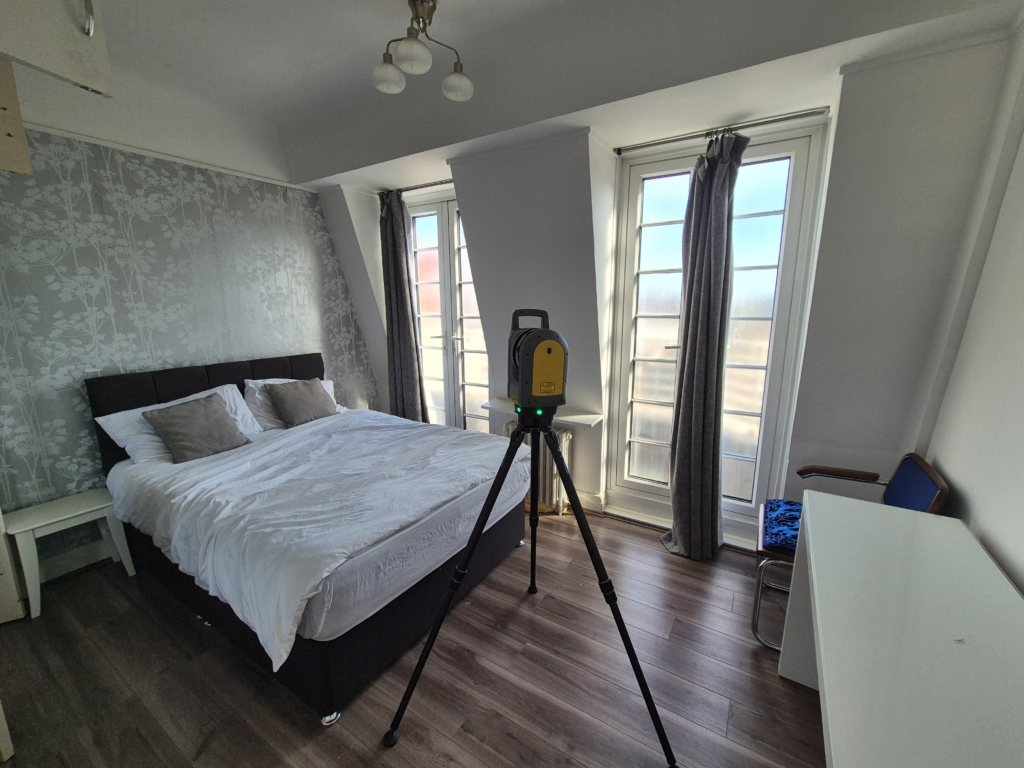

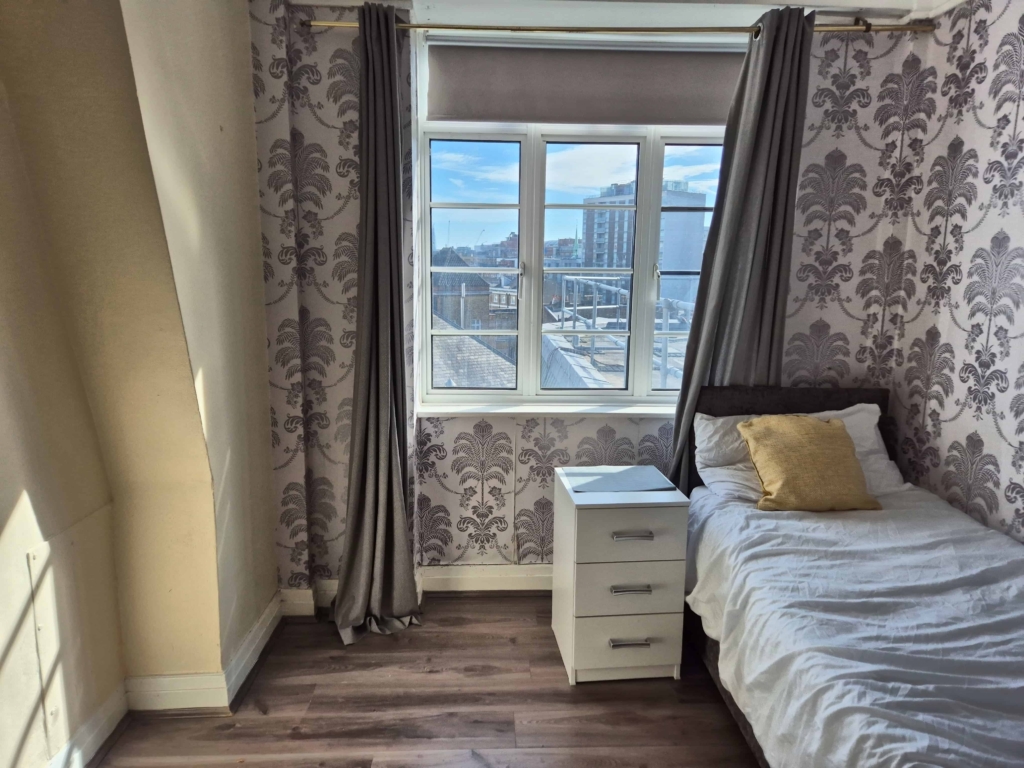

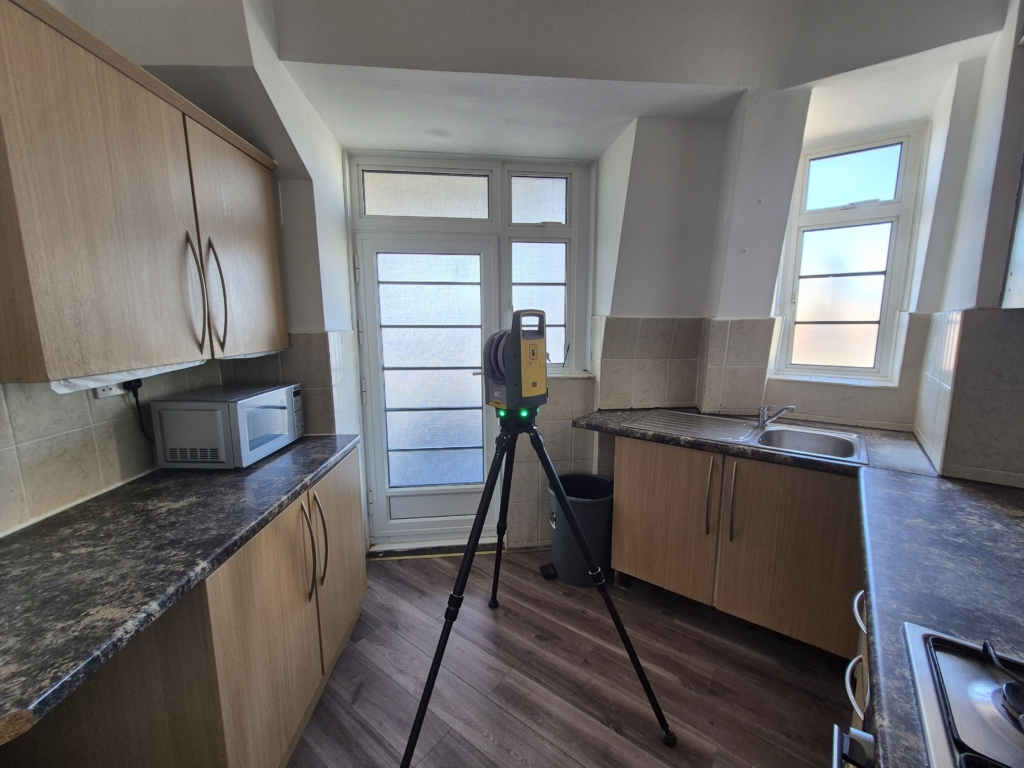

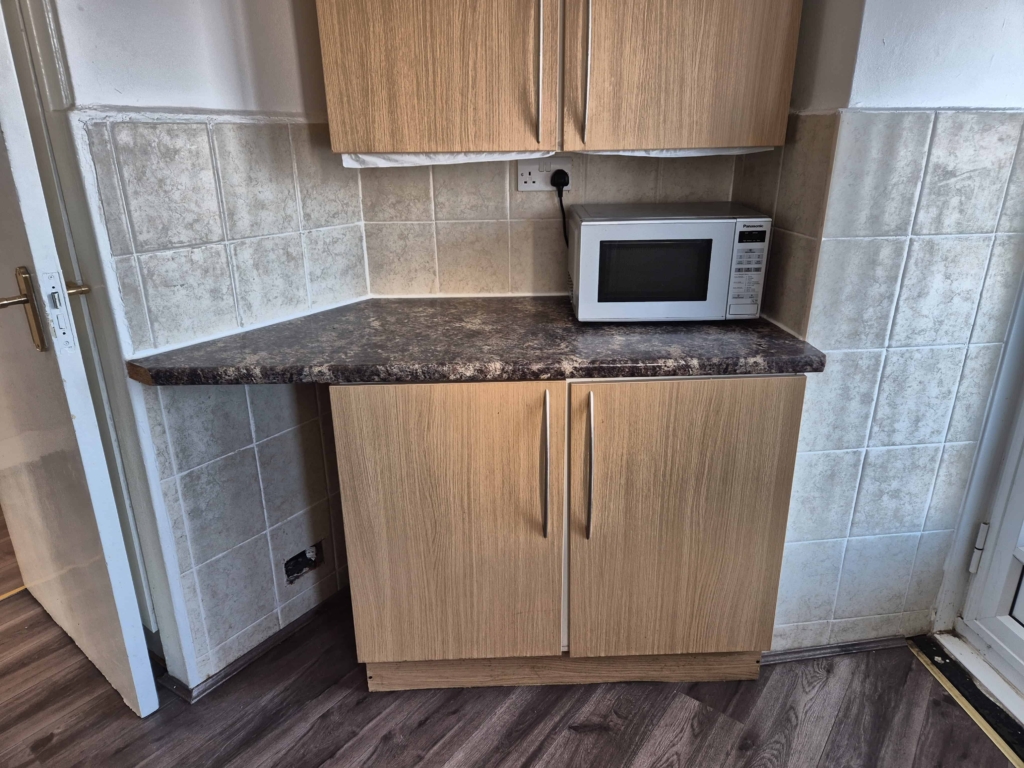

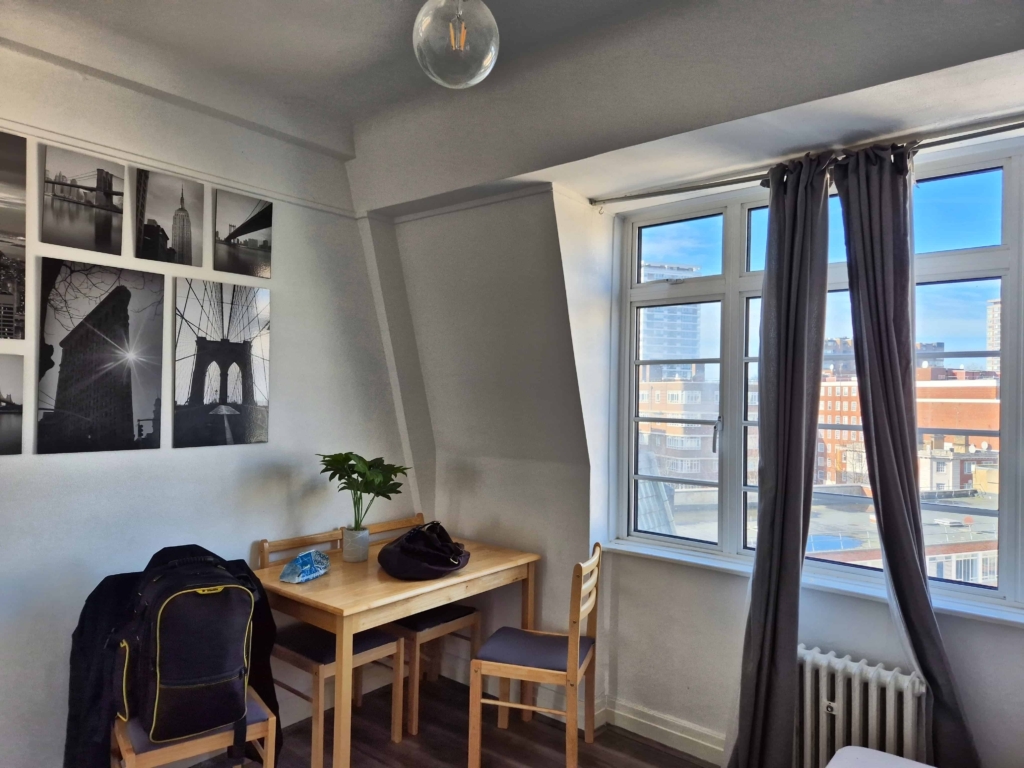

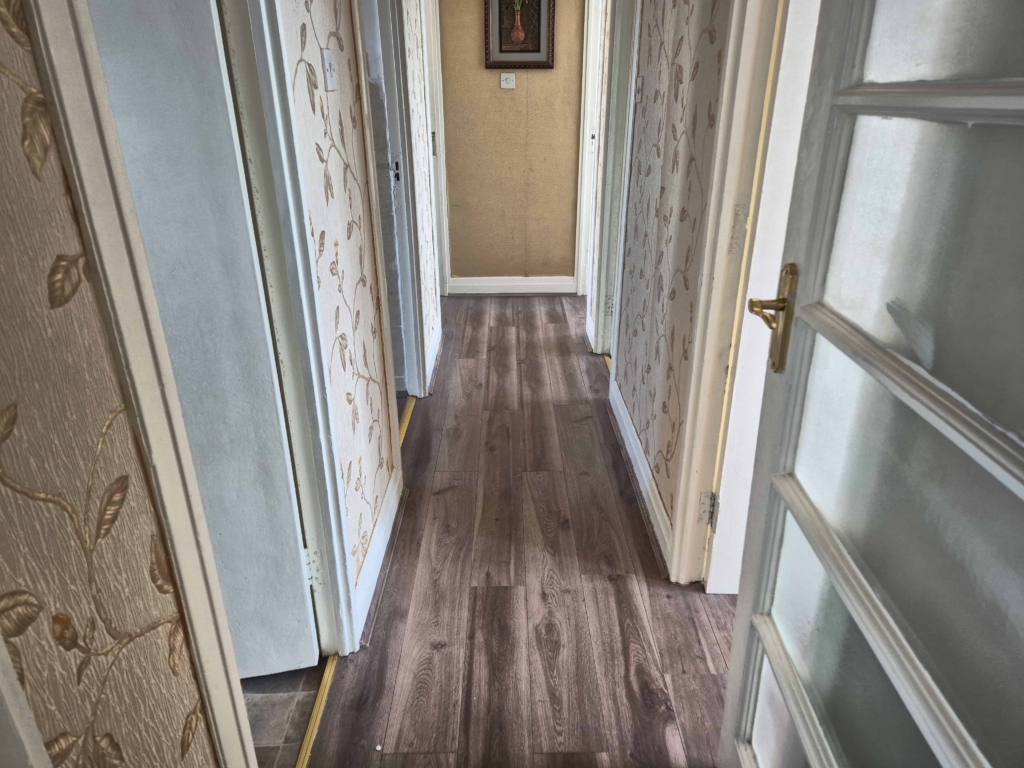

Site Pictures

---

Drawings
